| CODE | Old Code | Area (mm²) | No Of Wires | DIAMETER Wire (mm) | DIAMETER Cond. (mm) | Mass per Unit length (kg/km) | Rated Strength (Kn) | DC Resistance (Ω/km) | Current Carrying Capacity 1(A) |
|---|---|---|---|---|---|---|---|---|---|
| 28-AL2 | D 28 | 27,8 | 7 | 2,25 | 6,8 | 76,0 | 9,05 | 1,193 0 | 175 |
| 43-AL2 | D 40 | 43,1 | 7 | 2,80 | 8,4 | 117,7 | 14,01 | 0,7704 | 230 |
| 55-AL2 | D 56 | 54,6 | 7 | 3,15 | 9,5 | 148,9 | 17,73 | 0,6087 | 266 |
| 76-AL2 | D 80 | 75,5 | 19 | 2,25 | 11,3 | 207,4 | 24,55 | 0,442 | 326 |
| 117-AL2 | D 110 | 117,0 | 19 | 2,80 | 14,0 | 321,2 | 38,02 | 0,2854 | 428 |
| 148-AL2 | D145 | 148,1 | 19 | 3,15 | 15,8 | 406,5 | 48,12 | 0,2255 | 496 |
| 188-AL2 | D 180 | 188,1 | 19 | 3,55 | 17,8 | 516,3 | 59,24 | 0,1176 | 707 |
| 279-AL2 | D 280 | 279,3 | 37 | 3,10 | 21,7 | 769,3 | 90,76 | 0,12 | 735 |
| 381-AL2 | D 400 | 381,1 | 61 | 2,82 | 25,4 | 1 053,0 | 123,82 | 0,0882 | 892 |
| 454-AL2 | D 450 | 454,5 | 61 | 3,08 | 27,7 | 1 256,1 | 147,71 | 0,074 | 996 |
| 547-AL2 | D 550 | 547,3 | 61 | 3,38 | 30,4 | 1 512,7 | 177,88 | 0,0614 | 1119 |
| 638-AL2 | D 630 | 638,3 | 61 | 3,65 | 32,9 | 1 764,0 | 201,06 | 0,0527 | 1233 |
NOTE Direction of lay of external layer is right-hand (Z)

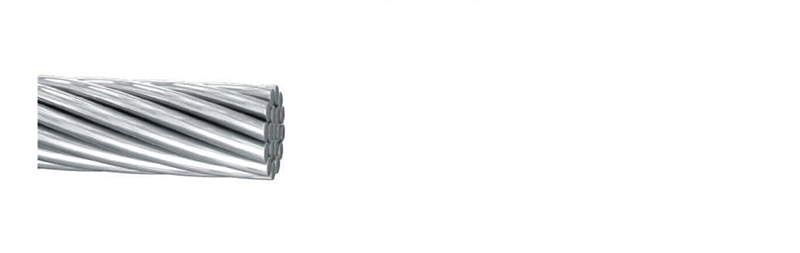

Characteristics of aluminium alloy conductors used in Germany - Type AL3
| CODE | Old Code | Area (mm²) | No Of Wires | DIAMETER Wire (mm) | DIAMETER Cond. (mm) | Mass per Unit length (kg/km) | Rated Strength (Kn) | DC Resistance (Ω/km) | Final modulus of elasticity (N/mm2) | Coefficient of linear expansion (1/K) | Current Carrying Capacity (A) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16-AL3 | 16 | 15,9 | 7 | 1,70 | 5,10 | 43,4 | 4,69 | 2,070 1 | 60 000 | 2,30-05 | 105 |
| 24-AL3 | 25 | 24,2 | 7 | 2,10 | 6,30 | 66,2 | 7,15 | 1,356 6 | 60 000 | 2,30-05 | 135 |
| 34-AL3 | 35 | 34,4 | 7 | 2,50 | 7,50 | 93,8 | 10,14 | 0,957 2 | 60 000 | 2,30-05 | 170 |
| 49-AL3 | 50 | 49,5 | 7 | 3,00 | 9,00 | 135,1 | 14,60 | 0,664 7 | 60 000 | 2,30-05 | 210 |
| 48-AL3 | 50 | 48,3 | 19 | 1,80 | 9,00 | 132,7 | 14,26 | 0,684 1 | 57 000 | 2,30-05 | 210 |
| 66-AL3 | 70 | 65,8 | 19 | 2,10 | 10,5 | 180,7 | 19,41 | 0,502 6 | 57 000 | 2,30-05 | 255 |
| 93-AL3 | 95 | 93,3 | 19 | 2,50 | 12,5 | 256,0 | 27,51 | 0,354 6 | 57 000 | 2,30-05 | 320 |
| 117-AL3 | 120 | 117,0 | 19 | 2,80 | 14,0 | 321,2 | 34,51 | 0,282 7 | 57 000 | 2,30-05 | 365 |
| 147-AL3 | 150 | 147,1 | 37 | 2,25 | 15,8 | 405,3 | 43,40 | 0,225 6 | 57 000 | 2,30-05 | 425 |
| 182-AL3 | 185 | 181,6 | 37 | 2,50 | 17,5 | 500,3 | 53,58 | 0,182 7 | 57 000 | 2,30-05 | 490 |
| 243-AL3 | 240 | 242,5 | 61 | 2,25 | 20,3 | 670,3 | 71,55 | 0,137 3 | 55 000 | 2,30-05 | 585 |
| 299-AL3 | 300 | 299,4 | 61 | 2,50 | 22,5 | 827,5 | 88,33 | 0,111 2 | 55 000 | 2,30-05 | 670 |
| 400-AL3 | 400 | 400,1 | 61 | 2,89 | 26,0 | 1 105,9 | 118,04 | 0,083 2 | 55 000 | 2,30-05 | 810 |
| 500-AL3 | 500 | 499,8 | 61 | 3,23 | 29,1 | 1 381,4 | 147,45 | 0,066 6 | 55 000 | 2,30-05 | 930 |
| 626-AL3 | 625 | 626,2 | 91 | 2,96 | 32,6 | 1 737,7 | 184,73 | 0,053 4 | 55 000 | 2,30-05 | 1 075 |
| 802-AL3 | 800 | 802,1 | 91 | 3,35 | 36,9 | 2 225,8 | 236,62 | 0,041 7 | 55 000 | 2,30-05 | 1 255 |
| 1000-AL3 | 1000 | 999,7 | 91 | 3,74 | 41,1 | 2 774,3 | 249,91 | 0,033 4 | 55 000 | 2,30-05 | 1 450 |
NOTE 1: Direction of lay of external layer is right-hand (Z)
NOTE 2: Values of final modulus of elasticity and coefficient of linear expansion for the conductor sizes listed in the Table are used in Germany. Values for other conductor constructions may be calculated using the method given in IEC 61597
NOTE 3: Guideline values of current carrying capacity are valid up to a freqency of 60 Hz, assuming a wind velocity of 0,6 m/s, the effect of solar initial ambient temperature of 35C and a conductor tenperature of 80C. For special applications, when there is no air turbulance, the values should be reduced by 30 %; radiation for Germany an
* Aras Kablo has right to camend above values without declaring prior to change.
