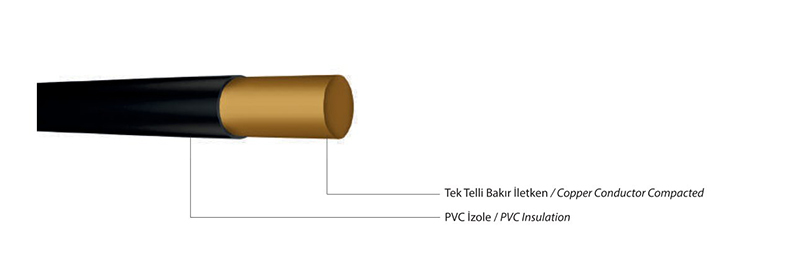

300/500-450/750 V Nya, Single Core Power Cable With Copper Conductor

Used in active devices connections, covered, dry places, in distribution panels,
on and under plaster as laid in conduit.
Maximum continious normal operating temperature: 70 °C
Standard: TS EN 50525-2-31
Cables for rated voltages of 450/750V

Nominal area of the conductors / İletkenlerin sayısı ve anma kesit alanı No.* sqmm	Overall diameter (approx.) / Dış Çap (Yaklaşık) mm	Cable Unit Weight (approx.) / Kablo Birim Ağırlığı (Yaklaşık) kg/km	DC resistance @ 20°C / DC Elektrik Direnci 20 °C'de Ω/km	"Current Carrying Capacity / Akım Taşıma Kapasitesi"		Delivery Lenght/ Sevk uzunluğu m
	Overall diameter (approx.) / Dış Çap (Yaklaşık) mm		DC resistance @ 20°C / DC Elektrik Direnci 20 °C'de Ω/km	In Air / Havada A	"Under Ground /Yer Altında" A	Delivery Lenght/ Sevk uzunluğu m
0,5 RE	2,1	8	36	11	–	100
0,75 RE	2,2	11	24,5	15	–	100
1 RE	2,4	14	18,1	19	11	100
1,5 RE	2,8	21	12,1	24	15	100
2,5 RE	3,3	32	7,41	32	20	100
4 RE	3,8	46	4,61	42	25	100
6 RE	4,3	65	3,08	54	33	100
10 RE	5,6	108	1,83	73	45	100
10 RM	6,0	111	1,83	73	45	1000
16 RM	7,0	170	1,15	98	61	1000
25 RM	8,5	260	0,727	129	83	1000
35 RM	9,5	355	0,524	158	103	1000
50 RM	11,0	490	0,387	198	132	1000
70 RM	13,0	694	0,268	245	165	1000
95 RM	15,0	938	0,193	292	197	1000
120 RM	16,5	1172	0,153	344	235	1000
150 RM	18,0	1465	0,124	391	–	1000
185 RM	20,0	1808	0,0991	448	–	1000
240 RM	23,0	2343	0,0754	528	–	1000

* Aras Kablo has right to camend above values without declaring prior to change.
* Aras Kablo önceden haber vermeksizin yukarıdaki değerleri değiştirme hakkına sahiptir.
