Indoor or outdoor installations, where there is no mechanical damage risk.
Maximum continious normal operating temperature: 90 °C
Maximum short circuit tempearture: 250 °C
Standard: IEC 60502-1
Power cables with extruded insulation
Cables for rated voltages of 1 kV ((Um = 1,2 kV)

No. X nominal area of the conductors / İletkenlerin sayısı ve anma kesit alanı	Min. no. of wires in phase conductor / Faz İletkeni İçin En Düşük Tel Sayısı	Nominal insulation thickness / Nominal İzole Kalınlığı	Nominal outer sheath thickness / Nominal Dış Kılıf Kalınlığı	Overall diameter of Bundled (approx.) / Kablo Bükülü Dış Çapı (Yaklaşık)	Cable Unit Weight (approx.) / Kablo Birim Ağırlığı (Yaklaşık)	DC resistance @ 20°C / DC Elektrik Direnci 20 °C'de	Current Carrying Capacity / Akım Taşıma Kapasitesi
							In Air / Havada		Under Ground / Yer Altında
							Flat / Düz	Trefoil / Üçgen	Flat / Düz	Trefoil / Üçgen
No.* sqmm		mm	mm	mm	mm	Ω/km	A	A	A	A
1 conductor / 1 İletken
1x25	6	0,90	1,4	10,3	165	1,200	136	106	177	114
1x35	6	0,90	1,4	11,3	200	0,868	166	130	212	136
1x50	6	1,00	1,4	12,7	245	0,641	205	161	252	162
1x70	12	1,10	1,4	14,8	330	0,443	260	204	310	199
1x95	15	1,10	1,5	16,5	420	0,32	321	252	372	238
1x120	15	1,20	1,5	18,0	510	0,253	376	295	425	272
1x150	15	1,40	1,6	20,2	630	0,206	431	339	476	305
1x185	30	1,60	1,6	22,5	780	0,164	501	395	541	347
1x240	30	1,70	1,7	25,1	975	0,125	600	472	631	404
1x300	30	1,80	1,8	27,6	1150	0,100	696	547	716	457
1x400	53	2,00	1,9	31,4	1545	0,0778	821	643	825	525
1x500	53	2,00	1,9	35,0	2100	0,0605	971	754	952	601
1x630	53	2,40	2,2	40,0	2550	0,0469	1151	882	1102	687

* Aras Kablo has right to camend above values without declaring prior to change.

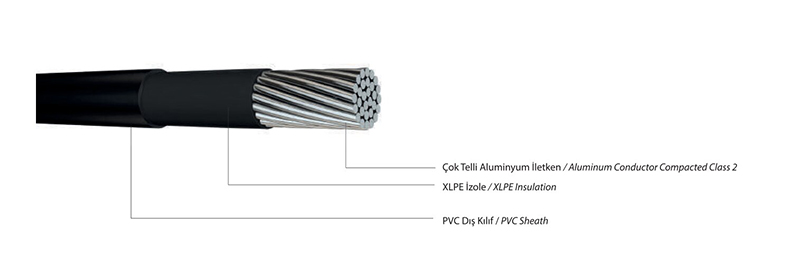

0,6/1 Kv Na2xy, Single Core Power Cable
