Indoor or outdoor installations, where there is no mechanical damage risk.

Maximum continious normal operating temperature: 90 °C

Maximum short circuit tempearture: 250 °C

Standard: IEC 60502-1

Power cables with extruded insulation

Cables for rated voltages of 1 kV (Um = 1,2 kV)

No. X nominal area of the conductors / İletkenlerin sayısı ve anma kesit alanı (No.* sqmm)	Min. no. of wires in phase conductor / Faz İletkeni için En Düşük Tel Sayısı	Nominal insulation thickness / Nominal İzole Kalınlığı (mm)	Nominal outer sheath thickness / Nominal Dış Kılıf Kalınlığı (mm)	Overall diameter of Bundled (approx.) / Kablo Büküklü Dış Çapı (Yaklaşık) (mm)	Cable Unit Weight (approx.) / Kablo Birim Ağırlığı (Yaklaşık) (kg/km)	DC resistance @ 20°C / DC Elektrik Direnci 20 °C'de (Ω/km)	Current Carrying Capacity – In Air / Havada (A)	Current Carrying Capacity – Under Ground / Yer Altında* (A)
3+1 conductors
3x16+10	6	0,70	1,80	19,70	860	1,150	98	112
3x25+16	6	0,90	1,80	23,00	1260	0,727	133	145
3x35+16	6	0,90	1,80	25,00	1580	0,524	162	174
3x50+25	6	1,00	1,90	28,00	2200	0,387	197	206
3x70+35	12	1,10	2,00	33,40	3030	0,268	250	254
3x95+50	15	1,10	2,20	36,70	3980	0,193	308	305
3x120+70	18	1,20	2,30	41,90	5100	0,153	359	348
3x150+70	18	1,40	2,40	45,60	6100	0,124	412	392
3x185+95	30	1,60	2,60	50,40	7580	0,0991	475	444
3x240+120	34	1,70	2,80	56,20	9600	0,0754	564	517

* Aras Kablo has right to camend above values without declaring prior to change.

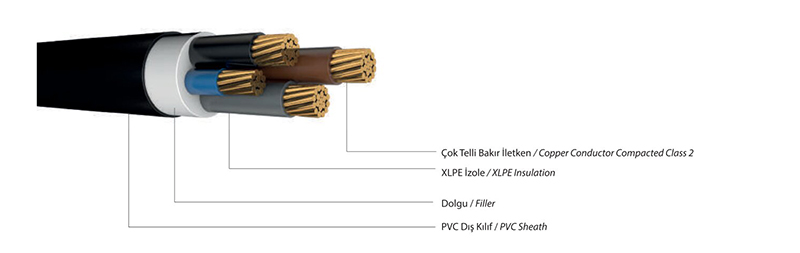

0,6/1 Kv N2xy, Multi Core Power Cable
